Audio kimenet PHONO (Pin Jack) x 1
Tápegység AC 120 V, 60 Hz
Teljesítményfogyasztás 11 W kb.
0,2 W (készenlét)
Méret 453 x 173 x 372 mm
Tömeg Kb. 11,5 kg
Tartozékok Lemezjátszó, Lemezlemez, Porvédő, EP rekord adapter, Mérleg,
Segédsúly, Fejhéj, Túlnyomásmérő, Csavarkészlet patronhoz, PHONO kábel,
PHONO földelővezeték, AC tápkábel, Felhasználói kézikönyv
Turntable Speeds 33-1/3, 45 and 78 r/min
Adjust Range ±8 %, ±16 %
Starting Torque 2.2 kg-cm
Build-up Characteristics 0.7 s. from Standstill to 33-1/3 r/min
Wow And Flutter 0.025 % W.R.M.S.
Rumble 78 dB (IEC 98A weighted)
Turntable Platter Aluminium diecast
Diameter : 332 mm
Weight : Approx. 2.5 kg (5.51 lb) (Including rubber sheet)
Tonearm Section
Type Universal Static Balance
Effective Length 230 mm (9-1/16")
Overhang 15 mm (19/32")
Tracking Error Angle Within 2° 32' (at the outer groove of 30 cm record)
Within 0° 32' (at the inner groove of 30 cm record)
Offset Angle 22°
Arm-height Adjustment Range 0 - 6 mm
Stylus Pressure Adjustment Range 0 - 4 g (Direct Reading)
Head Shell Weight Approx. 7.6 g
Applicable Cartridge Weight Range (without auxiliary weight)
5.6 - 12.0 g
14.3 - 20.7 g (including head shell)
(with auxiliary weight)
10.0 - 16.4 g
18.7 - 25.1 g (including head shell)
Cartridge Mounting Dimension JIS 12.7 mm (1/2") interval
Head Shell Terminal Lug 1.2 mm? 4-pin terminal lug
Terminals

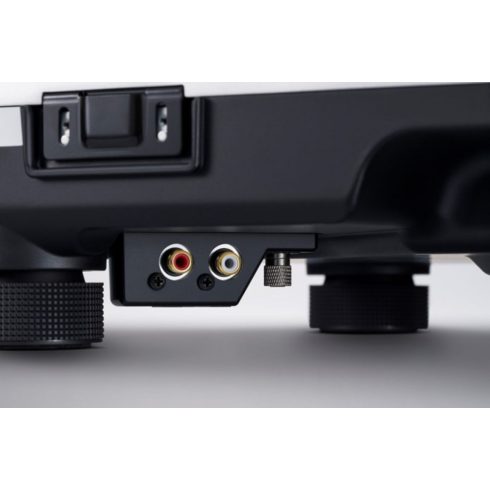

Audio Output PHONO (Pin Jack) x 1
EARTH TERMINAL x 1
