1 518 900 Ft
A vásárlás után járó pontok: 15 189 Ft
Pioneer DJM-V10-LF a Pioneer DJ legújabb zászlóshajója:

A tervezésnél különösen odafigyeltek arra, hogy a játszott zene stílusától függetlenül még teltebb, melegebb és tisztább hangzást biztosítson a keverő az elődökhöz képest.

Hosszú faderes verzió! Crossfader nélkül!

A csatornák 4 sávos EQ-t kaptak (mély, alsó és felső közép, valamint magas tartomány), elősegítve ezzel a még funkcionálisabb keverést - például mélyvágás esetén sokkal finomabban kiszűrhető a mixből a kick és a bassline, stb.. Helyet kapott egy kompresszor potméter is a sávokon, mellyel az esetleges gyengébb hangerejű (régi, vagy még nem masterelt) felvételek hangzását könnyedén kövérebbé tehetjük.

A kreatív felhasználás még magasabb szintre lépett a DJM-V10-LF esetében, melyet a kiterjesztett Send/Return szekció segít elő: A már ismert Send/Return FX lehetőség mellett kedvenc külső eszközünket, effektprocesszorunkat, gitárpedálunkat is használhatjuk egyidőben az újragondolt felépítésnek köszönhetően.

Az újragondolt design egyrészt segít könnyedén eligazodni a rengeteg funkció és lehetőség között, hiszen nagyon letisztult és átlátható lett a végeredmény, másrészről a tervezők igyekeztek vizuálisan is jelezni a keverő tiszta, meleg és tökéletes hangzásbeli adottságait, ennek köszönhetjük a színhasználatot a gombokon és a kivezérlésjelzőn is.

Pioneer DJ today announces the latest addition to its range of DJ mixers: the
DJM-V10-LF. This fresh unit features new, longer channel faders with optimized curves and a new
custom-designed curve preset to enable you to perform smooth and accurate mixes.
Some DJs never use a crossfader, preferring instead to mix with the channel faders because it gives
them more control – whether they want to perform smooth blends with tiny adjustments to the volume
of each track, or quickly drop sounds into the mix as if playing a musical instrument. Removing the
crossfader from the DJM-V10 has enabled the new 60 mm shaft slide faders on the DJM-V10-LF to
extend further down the top plate than the 45 mm faders on the original mixer, offering a longer range
of movement so you can control the volume of the audio source from each channel precisely. What’s
more, a brand-new fader curve setting has been added to the unit and the faders have been
appropriately weighted to enhance the potential offered by their elongated range.
All the other features and specifications of the DJM-V10-LF are the same as the DJM-V10, which has
become popular with the most creative DJs since its release in early 2020. The 6-channel unit produces
warm audio with energy and presence, and it’s loaded with unique features.
The DJM-V10-LF is available now at the SRP of £3,089 including VAT. Watch the introduction video
for the original DJM-V10 or find out more about the new mixer.
The DJM-V10-LF is a Hardware Unlock device for rekordbox, enabling free use of DJ performance
functions when the software is updated to the latest version.
The DJM-V10-LF is Serato DVS-ready (Serato DJ Club Kit license required, available separately) and
TRAKTOR DVS-ready (requires TRAKTOR PRO 3, available separately).

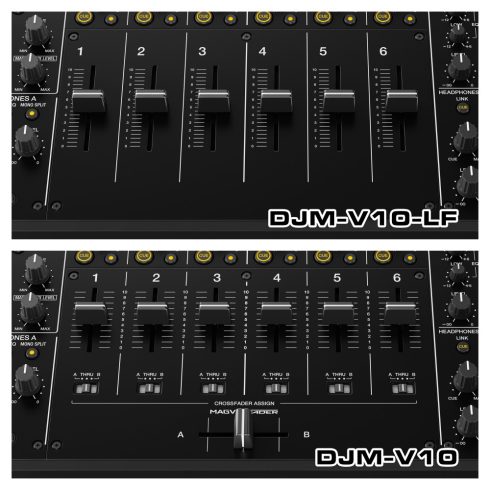

60 mm shaft slide faders
If you like to perform smooth, detailed mixes, you can enjoy a high level of control with the DJM-V10-

LF. The crossfader from the DJM-V10 has been removed and brand-new 60 mm shaft slide faders have
replaced the 45 mm ones on the channels.
Unique fader curve
The unit includes two of the classic fader curves from its predecessor – which have been optimized to
make the most of the extra length – as well as an all-new curve preset that enables you to make fine
adjustments to the volume of each channel and precisely control the output sound.
Elite sound quality
Producing a warm and natural sound, the DJM-V10-LF lets you, and your audience, hear every detail
in the music. Studio-quality 96-kHz/64-bit mixing and dithering processing within the DSP, as well as 32-
bit high-quality A/D and D/A converters and a low-jitter clock circuit all help to produce a full low-end
that’s complemented by vibrant mids and precise highs.
Six channels
Choose your ideal setup and plug in everything from CDJs and turntables to samplers, synths, and drum
machines. To make setup easy, the analog input terminals line up with each channel on the top panel,
so you’ll always know where to connect your cables when you’re in the booth.
4-band EQ
Sculpt your sound just the way you like with the newly developed 4-band EQ. The frequencies, curves,
and boost and cut amounts on each band have all been specially designed to give you total flexibility.
Completely isolate the high and/or low and tweak the two mid ranges – which have their own custom
curves – to fine-tune your mix.
Custom filter with dedicated knob on each channel
Drastically change the sound of a track or make tiny adjustments using the custom-designed filter with
resonance control. Switch on high or low pass by pressing either button, then turn the knob from all the
way to the left (no filter applied) to the furthest position on the right (maximum filter applied). Because
the high and low pass are separated, the entire range of the knob is dedicated to the option you choose,
giving you twice the resolution to play with compared to the filter on the DJM-900NXS2. This means you
can make much more nuanced adjustments to the effect.
Send/return section
Send audio to one of four built-in FX and up to two pieces of external equipment to create unique sounds
and even live remixes. You can connect a variety of units to the TRS jack send/return terminals such as
guitar pedals, FX units, and more.
The built-in send/return effects are Short Delay, Long Delay, Dub Echo, and Reverb. With parameter
knobs at your fingertips, you can further tweak the effects as follows:
• Size/Feedback: changes the room size when using a reverb, and the feedback amount
when using delays and echoes.
• Time: adjusts the decay time of the reverb and the delay time for delays and echoes.
• Tone: changes the hue of the effected sound, making it deep and heavy or light and crisp.
• Master Mix Level: acts as the overall volume of the effected sound when Master Mix is
turned on.
Whether you’re using external equipment or the built-in effects, you decide where to return the audio
to. Route it to an empty channel and make further changes to the effected sound using the EQ and
filter, or even drop it straight into the mix by turning on the Master Mix to route it to the master output.
3-band master isolator
Effortlessly control the tone of the entire mix thanks to the 3-band master isolator, which features custom
boost/cut curves and adjustments to the crossover frequencies and other parameters. Grab the large
dials and hype up the crowd by drastically changing the sound.
Compressor knob on each channel

3 2020.10.15.
If you want to play old or unmastered tracks but you’re worried they’ll be overwhelmed by the loudness
of music made with modern production techniques, the DJM-V10-LF has the solution. Turn the
compressor knob on the relevant channel and the mixer will “beef up” the audio in real time. The quieter
the track, the more pressure is added, boosting the sound of “weaker” tracks and having a minimal effect
on mastered music.
14 Beat FX
With 14 built-in Beat FX to play with, you can easily spice up your sets. The latest addition to the Beat
FX set is Shimmer – a reverb with a harmonic twist. It transposes the effected sound an octave up,
adding harmonic overtones. Working best when combined with a melodic element such as a lead or
chord, it creates a shimmering feel that adds depth and harmony to the sound.
Dual headphones output and booth EQ
Plug in your headphones at the same time as another DJ and enjoy independent monitoring. Each
headphones output has its own Cue/Master Mix control and level adjustment knob so you can choose
what you want to hear as you prepare to take over the decks, or during back-to-back sets. And, with
booth EQ, you can tweak the sound from the monitor speakers to prevent ear fatigue during long sets.
Support for external devices, apps, and services
DJ software
Control rekordbox, TRAKTOR PRO 3, and Serato DJ Pro.
RMX-1000 for iPad
Plug in your iPad via MULTI I/O, open the RMX-1000 for iPad app, and trigger effects and pre-assigned
samples to build up and break down tracks in sync with the beat.
The DJM-V10-LF supports the extended PRO DJ LINK ShowKontrol protocol. This enables DJs,
technical producers, LJs, and VJs to use all the important information from the
DJM-V10-LF, such as actual fader and knob positions, to effectively align sound and visuals and create
shows that blow audiences away. On top of this, some of the DJM-V10-LF settings can be remotely
configured via ShowKontrol software.
Efficiently record and easily archive your mixes via the DJM-REC app for iPhone or iPad. Upload your
sounds to cloud services or effortlessly live-stream your sets.
Other features
• Lockable power cable*1 – avoid accidental disconnection
• DIN Midi out – sync external production gear using the BPM from rekordbox

Elérhetőség:  ha saját raktáron: 1-2 munkanap

                       ha központi raktáron: 3-21 munkanap általában

                       kérdés esetén vedd fel velünk a kapcsolatot

Kiszállítás: 40 000 Ft felett ingyenes.

Egyes termékek esetében országos készlethiány előfordul.


DJM-V10-LF specifications
Software rekordbox
Serato DJ Pro
Frequency Response 20 Hz – 40 kHz (LINE)
S/N Ratio 116 dB (USB, DIGITAL IN)

105 dB (LINE)
88 dB (PHONO)
79 dB (MIC1,2)

Total Harmonic Distortion 0.005 % (LINE-MASTER1)

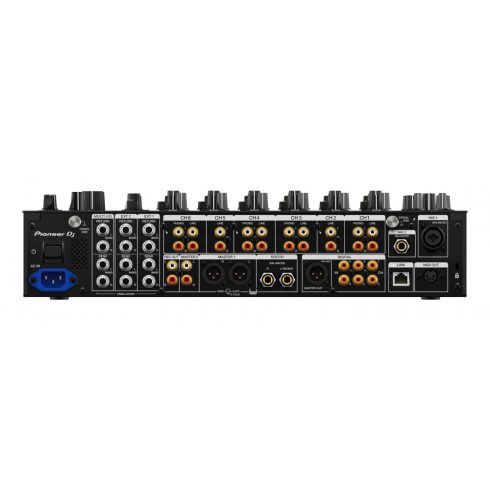

Input/Output Terminals Inputs DIGITAL x 6 (Coaxial)

4 2020.10.15.

LINE x 6 (RCA)
RETURN x 3 (1/4-inch TS jack)
MIC x 2 (XLR & 1/4-inch TRS Jack, 1/4-inch TRS

Outputs MASTER x 2 (XLR, RCA)

BOOTH x 1 (1/4-inch TRS jack)
SEND x 3 (1/4-inch TS jack)
HEADPHONE MONITOR x 4 (1/4-inch stereo
jack x 2, 3.5-mm stereo mini jack x 2)
REC x 1 (RCA)
USB USB (Type A) x 1
USB (Type B) x 2
Others LINK (LAN) x 1
MIDI (5-pin DIN) x 1

Maximum Dimensions (W x D x H) 437.6 x 467.0 x 107.9 mm / 17.23” x 18.39” x


Weight 12.1 kg / 26.7 lbs
Accessories Power cord (lockable*1)
