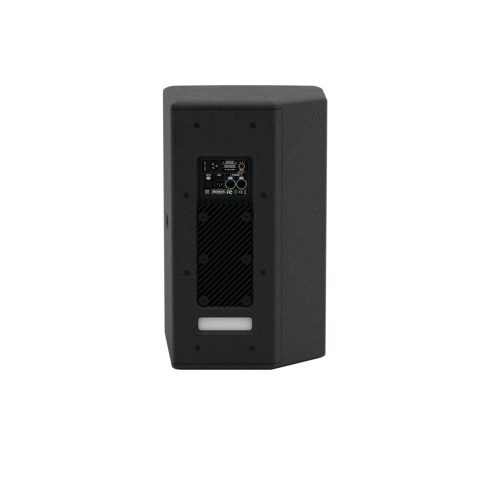

Martin Audio CDD-LIVE12B

Name: Martin Audio CDD-LIVE12B
SKU: 4565775432
Price: 1399000 HUF

1 399 000 Ft

A vásárlás után járó pontok: 13 990 Ft

Kosárba

The CDD-LIVE 12 is a high-performance, self-powered system designed for professional applications that require high output levels and exceptional fidelity from a very compact enclosure. With a peak output capability of 128dB at 1 metre, it is the ideal solution for a multitude of premium stand-alone and distributed sound reinforcement requirements — from touring, theatre and portable live sound, to concert hall and HoW installations, AV events and stage monitor use.

Features

Compact, self-powered two-way system
Coaxial Differential Dispersion™ technology
Onboard Class D amplification and DSP
Dante™ Digital Audio networking
Global mains operation with Power Factor Correction
User-rotatable CDD™ driver
Vertical and horizontal mounting options
Tour-grade, multi-angle plywood enclosure
IP24 rating option with rain cowl
Comprehensive mounting accessories

Applications

Live sound reinforcement
Theatre sound
Corporate AV events
Fixed installations in concert halls, ballrooms and HoW
Stage monitor and infill
Bars and clubs

Elérhetőség: ha saját raktáron: 1-2 munkanap

ha központi raktáron: 3-21 munkanap általában

kérdés esetén vedd fel velünk a kapcsolatot

Kiszállítás: 40 000 Ft felett ingyenes.

Egyes termékek esetében országos készlethiány előfordul.

Részletek

ACOUSTICS

TYPE Compact, Coaxial Differential Dispersion powered two-way system
FREQUENCY
RESPONSE (1) 62Hz – 20kHz ±3dB, -10dB @ 50Hz
DRIVER LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
INPUT SENSITIVITY -30dBu for 100dB SPL
MAXIMUM SPL (2) 122dB continuous / 128dB peak
DISPERSION 110˚-60˚ horizontal, 60˚ vertical (user-rotatable)
CROSSOVER 1.5kHz Active LR8 with low latency HF FIR equalisation
Balance presets for pole mount/ pole mount with sub/ stage monitor

MODULE
AUDIO INPUT

CONNECTORS Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
ANALOGUE INPUT IMPEDANCE 20 kΩ balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL 24.6 Vpp (+21dBu), over voltage protected
INTERNAL PROCESSING Multi-channel DSP, programmable via TCP/IP using VU-Net software
PEQ/shelving filters
Up to 48dB/Oct HPF
Low latency HF FIR filters
Up to 200ms input delay
Pre-set selection via rear panel switch

NETWORK
CONNECTORS 2xNeutrik® Ethercon
PROTOCOL TCP/IP and UDP/IP

AMPLIFIER
TYPE 2 channel switch-mode, class D,
Bridged Tied Load + 1 channel switch-mode, class D
PEAK OUTPUT POWER 2500W total
2000W LF, 500W HF
AVERAGE EFFICIENCY 89%
COOLING External convection cooled, with internal fan
MAXIMUM AMBIENT TEMPERATURE 40°C (104°F) for full output

POWER SUPPLY
TYPE Switch mode, fixed frequency with PFC
AC INPUT OPERATING RANGE 85 – 265V ~ AC, 50 - 60Hz
POWER FACTOR > 0.98
NOMINAL POWER CONSUMPTION 160W
MAINS CONNECTOR Neutrik® Powercon True1

MECHANICAL
ENCLOSURE Extensively braced multi-laminate plywood.
FINISH Textured black PU coating.
PROTECTIVE GRILLE HEX perforated mild steel with protective zinc plating and black powder
coat finish. Backed with black grille cloth.
FITTINGS Top hat for pole mounting
15 x M8 mounting points
Two side pocket handles
Optional weather protection cowl
IP RATING IP24 factory option available
DIMENSIONS (W) 359mm x (H) 580mm x (D) 373mm
(W) 14.13in x (H) 22.83in x (D) 14.69in
WEIGHT 28kg (61.6lbs) excluding Transit cover
ACCESSORIES Transit Cover
Optional wall, yoke and universal brackets
