117 000 Ft
A vásárlás után járó pontok: 1 170 Ft
DuraTruss DT34/2-200 - 4-Point Truss 200cm

The DURATRUSS DT34/2 System is a 4-point truss system that is connected with four conical connectors, bolts and locking pins.
The advantage of the quick connector system is that it closes with a force-fit connection with the belt tube and enables quick assembly with frequent assembly and disassembly. The four belt tubes are made of 50mm aluminum tube with 2mm wall thickness and give this system an excellent weight-load capacity ratio. The braces have a diameter of 20mm and a wall thickness of 2mm.
The system can optionally be expanded as required. Corners, T-branches, angles, and circles are available. An extensive range of accessories from hooks, connectors, floor plates, wall brackets, spacers and much more round off the delivery program.
The system, made in Europe, is of course TÜV certified.

Strengths of the truss system:
• High quality aluminum tubes with 50mm diameter
• Easy installation
• Low weight
• Space-saving transport
• For exhibition stand construction and event technology

Elérhetőség:  ha saját raktáron: 1-2 munkanap

                       ha központi raktáron: 3-21 munkanap általában

                       kérdés esetén vedd fel velünk a kapcsolatot

Kiszállítás: 40 000 Ft felett ingyenes.

Egyes termékek esetében országos készlethiány előfordul.

Részletek
Specifications:
• Main Tube: 50 x 2 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin

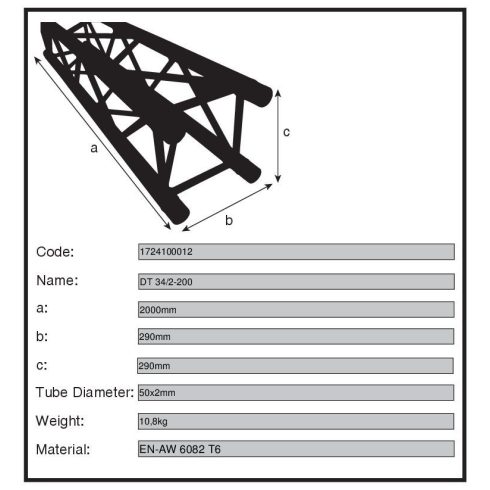

Dimension and weight:
• Lenght: 2000 mm (without connector)
• Width: 290 mm
• Height: 290 mm
• Weight: 10,8 kg
Delivery including connector set, consisting of: 4 conical connectors, 8 bolts and 8 locking pins.
Adatok
Cikkszám
1724100012
