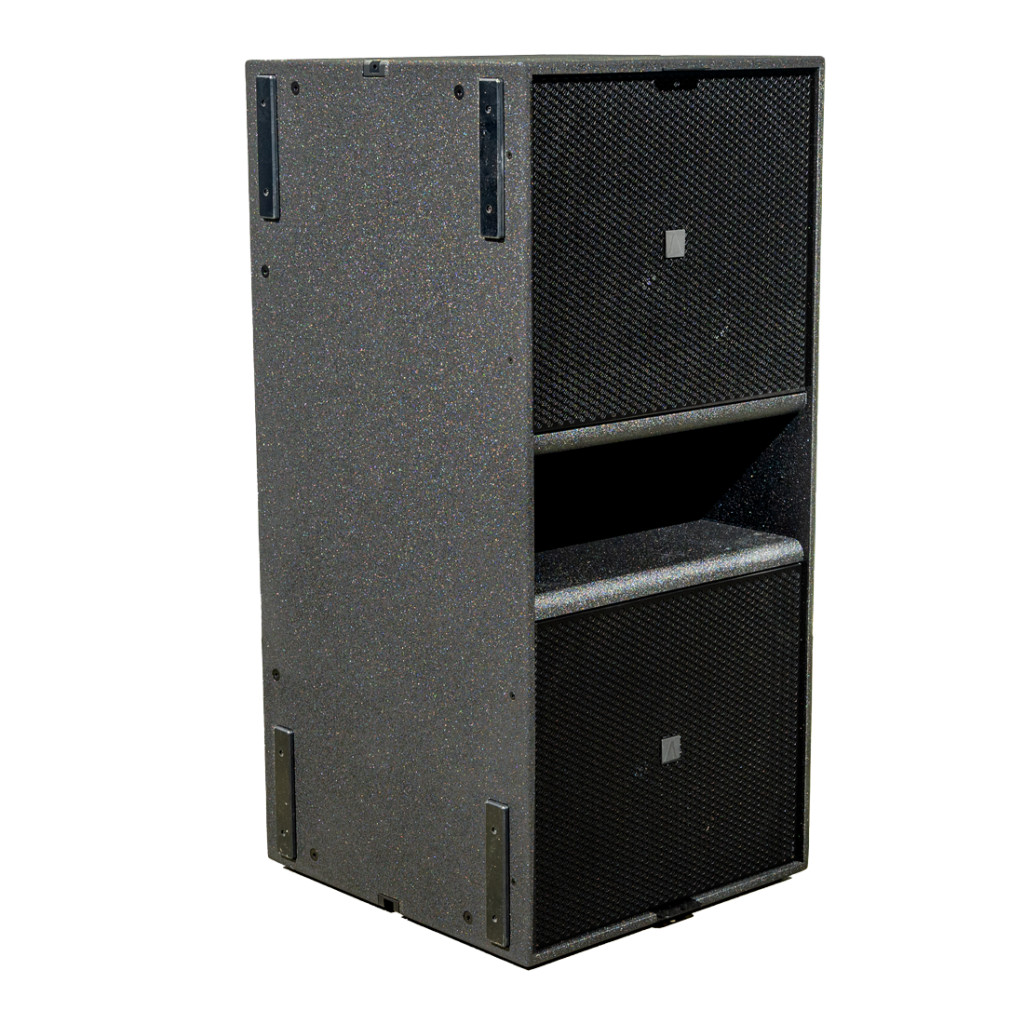

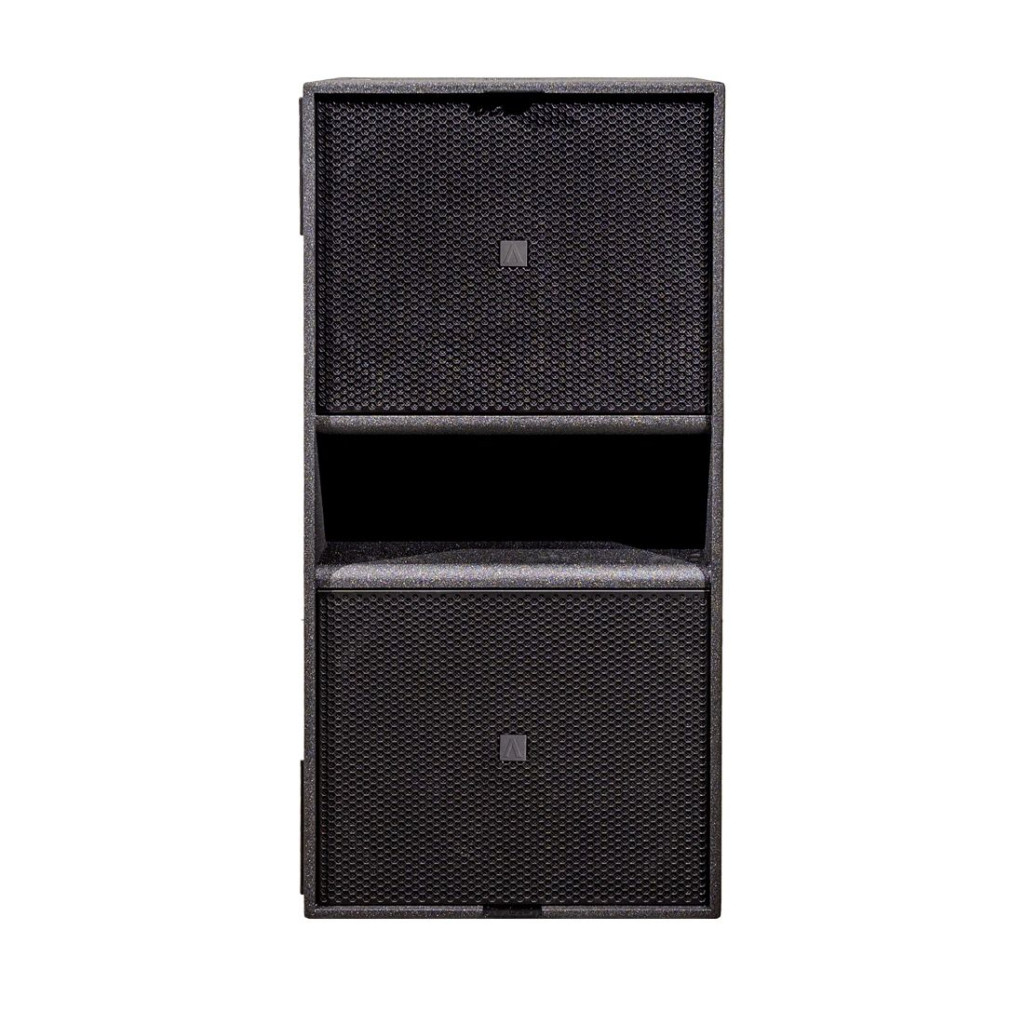

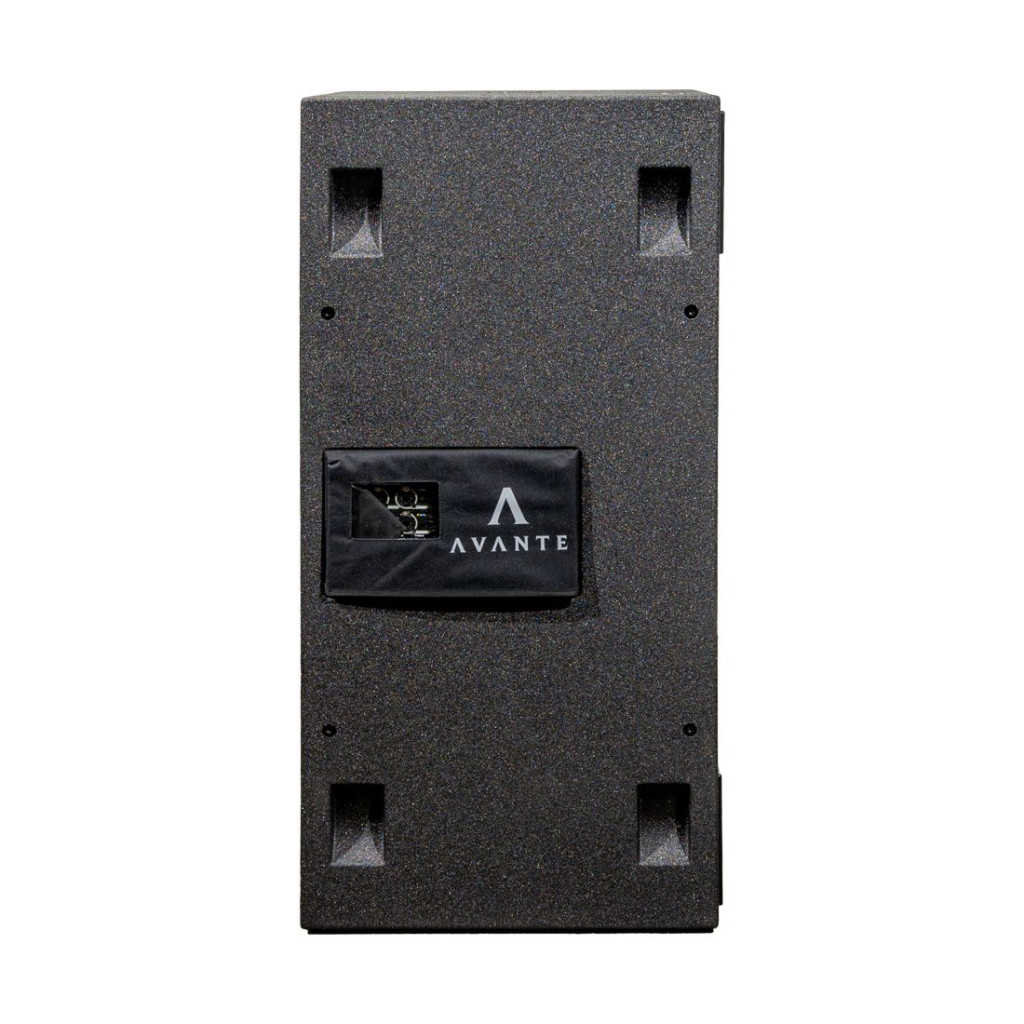

Avante Akro ATS218 Sub

• Speaker type: 1-way active dual 18-inch subwoofer, Milan certified

• Frequency response: 35 - 200 Hz
• Max. SPL: 132 dB
• LF: 2 x 18-inch ferrite woofers with 4-inch voice coils

• Amplifier power: 1200 W RMS / 2400 W program / 4800 W peak
• Cooling: Convection with internal fan
• Power supply: Auto-switching AC 100-240 V, 50/60 Hz
• Protection: Thermal, DC offset, output short circuit

• Controller: 64-bit multimode processor with Milan
• AD/DA converter: 96 kHz
• Limiter: Multiband compressor and peak limiter
• Processing filters: 10-band IIR

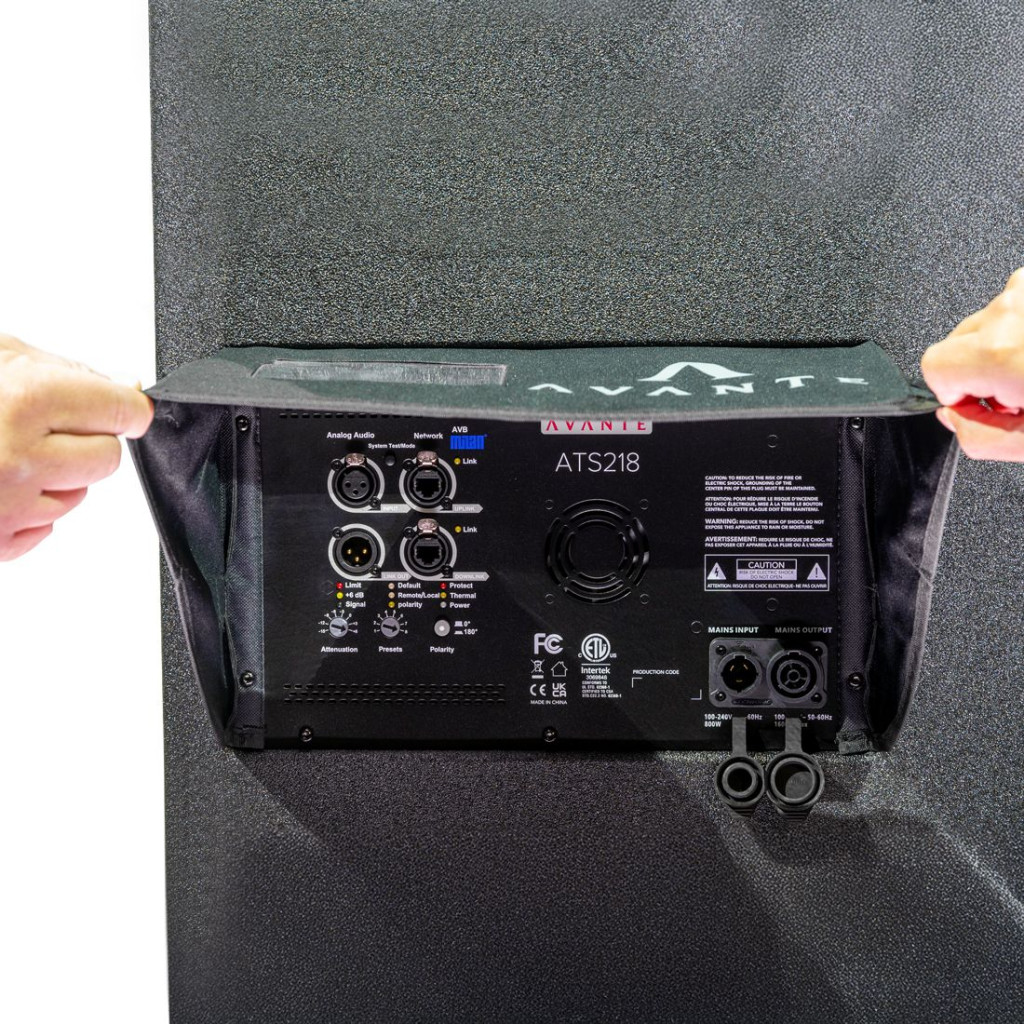

• Analog signal input/output: 3-pin XLR
• Power connection: IP65 locking power input/output
• Network: Locking RJ45 input/output for control and Milan
• Controls: Input attenuation (-15 dB to +6 dB), system test and reset button
• Special features: Frontal LED identification system

• Current draw: 3.7 A
• Power consumption: 428 W

• Full system control and monitoring via AKRO Command software
• Compatible with macOS and Windows (32-bit / 64-bit

• Housing: Multiplex plywood with Polyurea coating
• Handles: 4 integrated handles (2 per side)
• Rain cover: Included and permanently attached
• Rigging points: Fixation holes for AFB328 flybar attachment
• Dimensions (L x W x H): 1219 x 575 x 575 mm
• Weight: 79 kg
