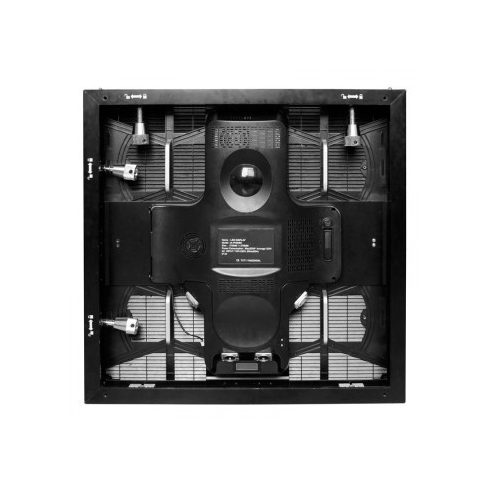

ADJ AV6X LED fal panel

OPITCAL RATINGS:

- Brightness: 1200 NITS

- View Angle: Horizontal 140°/Vertical 140°

- Distance: 20ft (6m)

- Gray Scale / Display Color: 14Bit

- Brightness Adjustment: 0~100% 100 Levels

- Processing: 14Bit



POWER SUPPLY:

- Operation Power: 100~240V 50-60Hz

- Max. Power Consumption: 300W/per panel

- Ave. Power Consumption: 120W/per panel

- Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out



CONTROL SYSTEM:

- Control Mode: Nova Star Synchronous System with Control via DVI

- Frame Update Frequency: 50-60Hz

- Scan Mode: 1/12 Duty

- Refresh Rate: 1200Hz

- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

- Control Distance: Ethernet Cable <100m or Fiber Optic>120m

- Support VGA Mode: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668

- Brightness Correction: Pixel, Module, Cabinet



ENVIRONMENTAL:

- Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/

10-90% (No Condensation)

- Operating Life / MTBF: 100,000 Hours / 5,000 Hours

- Protection Level: IP20 (Front and Back)

- Out of Control Rate: <0.02%



HEAT EMISSIONS:

- 100% Brightness = 172W = 587 BTU/h

- 75% Brightness = 133W = 454 BTU/h

- 50% Brightness = 96W = 327 BTU/h

- 25% Brightness = 57W = 195 BTU/h



OPTIONAL ACCESSORIES:

ADJ Touring Case 8x AV6 : - fits 8 AV6 or AV6X Video Walls

AV6RB2: Rigging Bar - Connect up to 20 AV6 Video Walls

MCTRL-300: Video Processor

VX4S : Video Processor & Scaler

CABLES:

Cabinet to Cabinet Data Link Cables (NEUTRIK Ethercon Connectors)

MCTRL-300 Processor to Cabinet (NEUTRIK Ethercon Connectors)

NEUTRIK POWERcon Link Cables

NEUTRIK POWERcon Main Power Cables
